- Engineer Module : Engineers define the input data and write design rules, design calculations, annotations etc. Which will act on existing assemblies, parts, drafts, drawing and documents.
Engineer can automate work in 3 simple steps :
- Define Input Variables : Engineer can define input variables validation rules, Help images and databases link etc.
- Extract Data To MS Excel : CADCustomization++ will read SolidEdge file and write data to MS Excel as required by engineer.

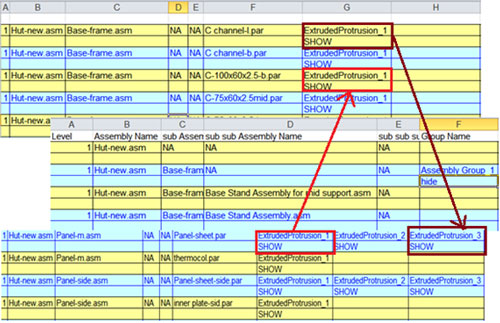

- Define The Design Rules : Engineer has to input the design calculation, link the data and define the "if", "Lookup" and other formulas in MS Excel.

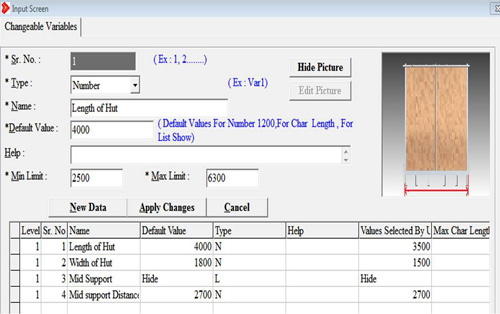

Step 1Define Input Variables

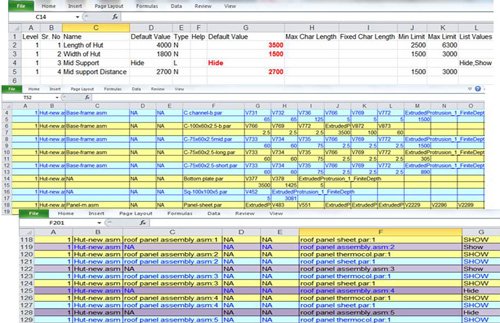

Step 2Data Extracted To Excel

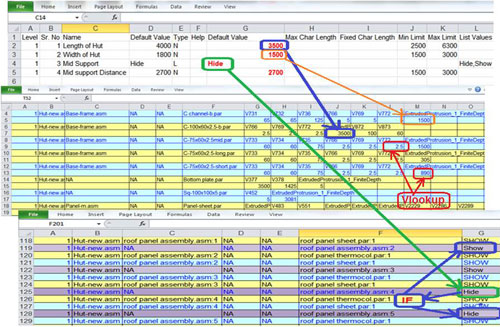

Step 3Define The Design Rules

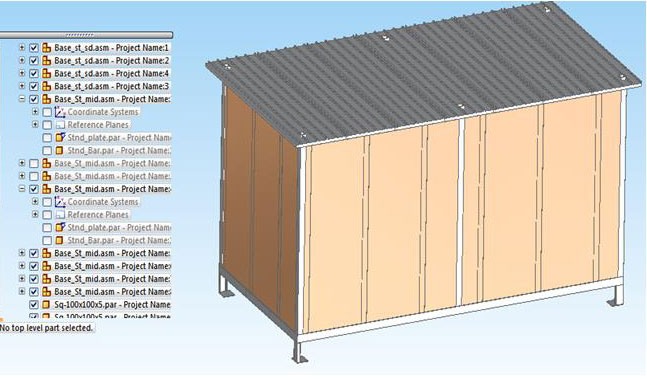

Step 4Desired Output
Step 5Defined Draft Rules

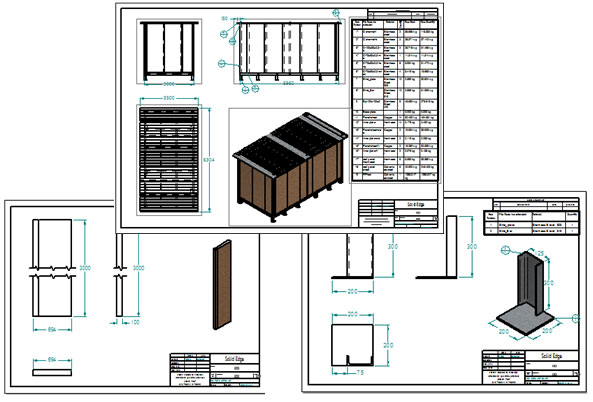

Step 6Desired Draft Output
